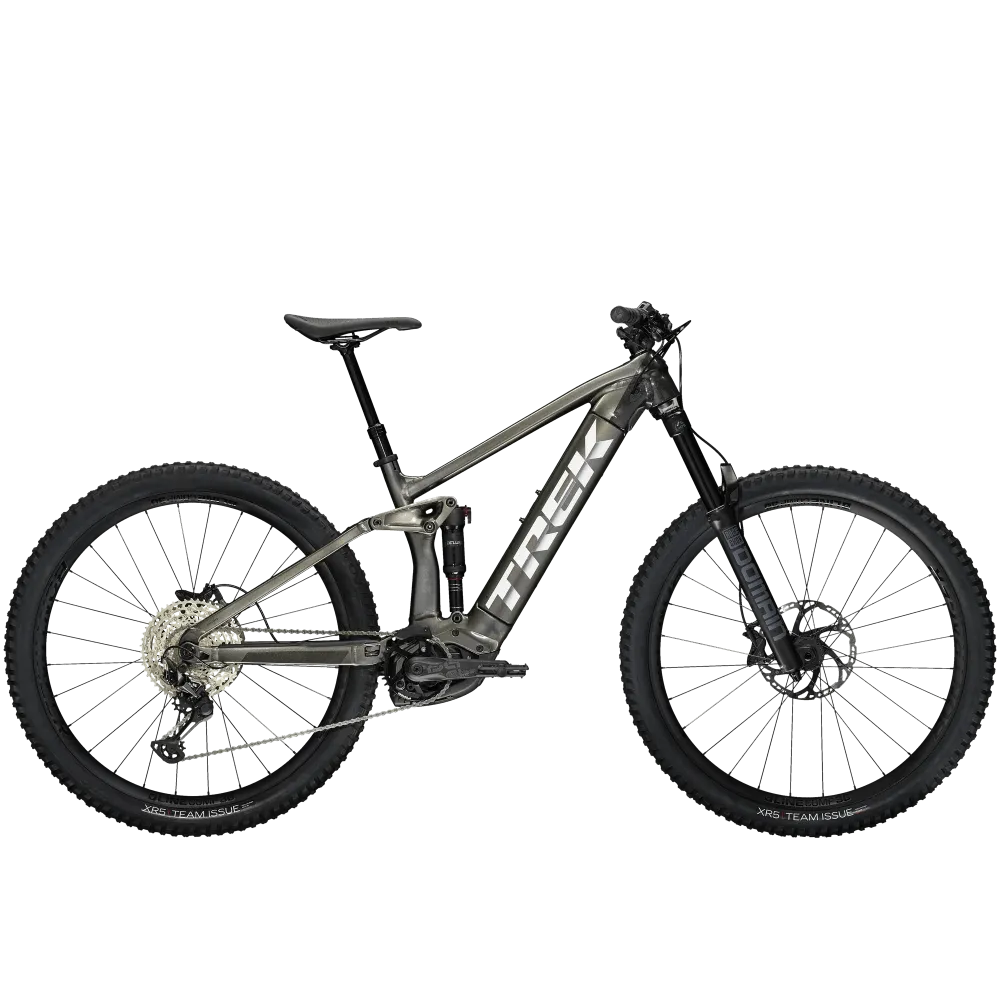

Name: Trek Rail 7 E Bike
SKU: 534445

Hard-charging hero-maker

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analog trail bikes, an upgraded fork, drivetrain, battery, and more, plus a powerful new Bosch drive system that's basically like having your own shuttle.

You’re looking for a trail-specific e-MTB that’s designed to tackle the same tough terrain as regular trail bikes. You already know just how awesome e-MTBs are on the mountain, and want to invest in higher performance components.

A light and durable Alpha Platinum Aluminum frame that fully encases a 625Wh battery for sleek looks and protection on the trail, a 160mm RockShox Yari RC fork, 150mm of rear travel with a RockShox Deluxe RL shock, a powerful Bosch Performance Line CX 250W motor that assists up to 20 mph, and a Purion controller. A 1x12 Shimano SLX/XT drivetrain, dropper post, Shimano 4-piston brakes, and Bontrager Line Comp 30 29er wheels.

Rail 7 features an upgraded Shimano drivetrain and brakes, and an upgraded RockShox fork. But the biggest deal is that it houses the longest-range Bosch battery you can get. That means more runs and more fun.

The new, better-than-ever Bosch motor is smaller, lighter, and more efficient. It feels more natural while you’re pedaling, and has less drag when you’re not
Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain—no shuttle or lift necessary
Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness, and Active Braking Pivot (ABP)
It's equipped with an external charging port for easy charging on or off the bike

Details & Specs

Terrain	Trail, Mountain	Fork	RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimized, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Front Wheel	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle	Frame	Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Rear Wheel	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle	Rims	Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
Tires	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60''	Shifter	Shimano SLX M7100, 12 speed
Crank Arm	Ethirteen Espec Plus, 15T, 165 mm length	Rear Derailleur	Shimano XT M8100, long cage, 51T max cog
Cassette	Shimano SLX M7100, 10-51, 12 speed	Saddle	Bontrager Arvada, steel rails, 138 mm width
Chain	Shimano SLX M7100, 12 speed	Seatpost	TranzX JD-YSP18, travel, internal routing, 31.6 mm
Handlebar	Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width	Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length	Pedals	VP-536 nylon platform
Headset	FSA IS-2, 1-1/8'' top, 1.5'' bottom	Brake	Shimano hydraulic disc, MT501 lever, MT520 4-piston caliper
Bottom Bracket	Shimano MT500, 92 mm, PressFit	Shock	RockShox Deluxe Select , 230x57.5mm
Brake Rotor	Shimano RT76, 203mm, 6-bolt	Battery	Bosch PowerTube 500
Charger	Bosch compact 2A (100-240V) charger	Controller	Bosch Purion
Motor	NEW Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 20 mph or 32 km/h max assist	Weight	M - 23.65 kg / 52.14 lbs (with tubes)

Mino Link adjustable geometry

Fine tune head tube angle by 1/2° and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.

Tubeless Ready

Tubeless Ready rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. The rim strips are already installed; just add TLR valves and sealant.

Control Freak Cable Management

The lightest, quietest, most versatile cable management system allows any combination of shift, brake, lockout, and dropper post lines to be routed through the frame for clean looks and the ultimate custom setup.
