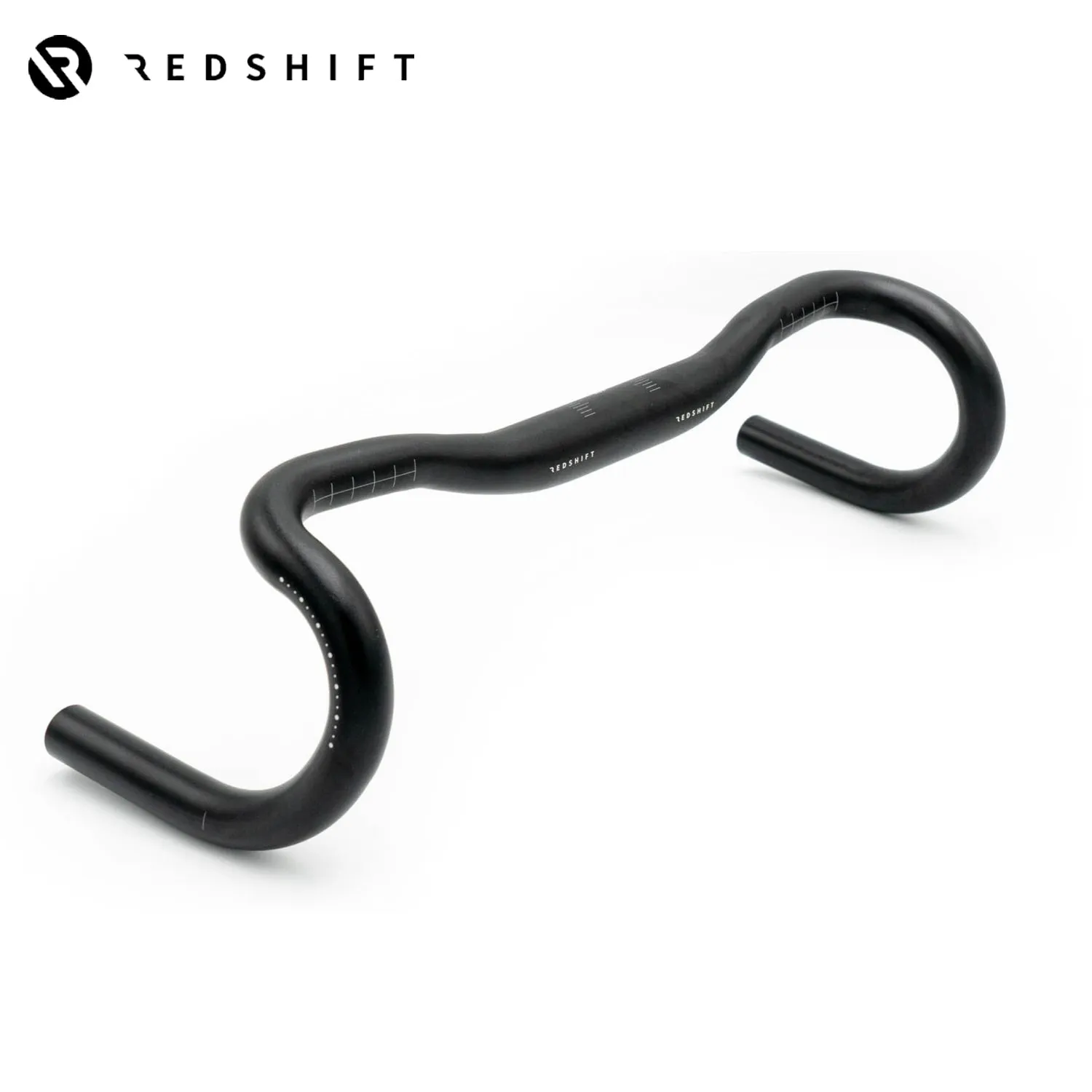

Low Flare Kitchen Sink Gravel Handlebar System
The same great rise and backsweep as the original Kitchen Sink Handlebar, now with new road style drops. The Kitchen Sink Low Flare Handlebar is an ultra-comfortable and aero bar that keeps you in control on and off-road.
The gravel bike handlebar that has everything but the kitchen sink.
If you are looking for comfort, control, and convenience the Kitchen Sink Gravel Bike Handlebar is for you. With widths from 41cm up to 53cm, these new low flare gravel handlebars can aid stability and control but at the same time provide really comfortable hand positions.
KEY Handlebar Features:
- 20mm of rise means less pressure on the hands and a broad range of fit options to accommodate a variety of gravel riding conditions.
- 7° degrees of sweep means the bar is positioned where your hands want to be, whether you're on the flats, the hoods or the drops during your most epic gravel ride.
- Low Flare (10° degrees) and a compact drop are perfect for road and gravel riders who prefer a more traditional road shaped bar.
Why 10 degrees?
Because it's the right balance between classic dropbar shaping and the ergonomic comfort advantages of flare. A small amount of flare on performance road bike bars is quickly becoming a very popular option for this very reason.
Non-Loop
Specifications
| Width | 41cm | 44cm | 47cm | 50cm | 53cm |
| Weight (base version) | 350g | 362g | 373g | 383g | 392g |
| Weight (loop version) | 460g | 472g | 486g | 497g | 507g |
| Rise | 20mm | 20mm | 20mm | 20mm | 20mm |
| Sweep | 7 deg | 7 deg | 7 deg | 7 deg | 7 deg |
| Drop Flare | 10 deg | 10 deg | 10 deg | 10 deg | 10 deg |
| Drop | 117mm | 117mm | 117mm | 117mm | 117mm |
| Reach | 72mm | 70mm | 68mm | 65mm | 62mm |
| Clamp | 31.8mm | 31.8mm | 31.8mm | 31.8mm | 31.8mm |
| Material | 6061 T6 Aluminum | ||||
| Intended Use | ASTM F2043 Class 2 - For on and off-road riding and drops less than 15cm (6"). | ||||
| Product | Top Grips | Drop Grips |
| Weight | 94 g / pair | 144 g / pair |
| Length | 165 mm (can be trimmed by 30 mm) | 120 mm |
| Material | Kraton | Kraton |
| Product | Kitchen Sink Bag | add-on Computer Mount |
| Weight | 120g | 21g |
| Capacity | 0.75 L - 1.0 L | N/A |
| Material | Ballistic Nylon | 3D printed Polycarbonate blend filled with carbon fiber |
What Are the Detailed Dimensions (Including the Loop) of the Kitchen Sink Handlebar?
The inner distance of the loop along the handlebar (A) is approximately 5.50in (140mm).
The outer distance of the loop along the handlebar is (B) is approximately 7.875in (200mm).
The width of the 31.8mm diameter section of handlebar (where the stem is clamped) is approximately 85mm - outside that distance the diameter decreases and the bar bends.
The loop has a diameter of 23.8mm which is the same diameter as the rest of the handlebar(outside the 31.8mm clamp area and tapered section)
