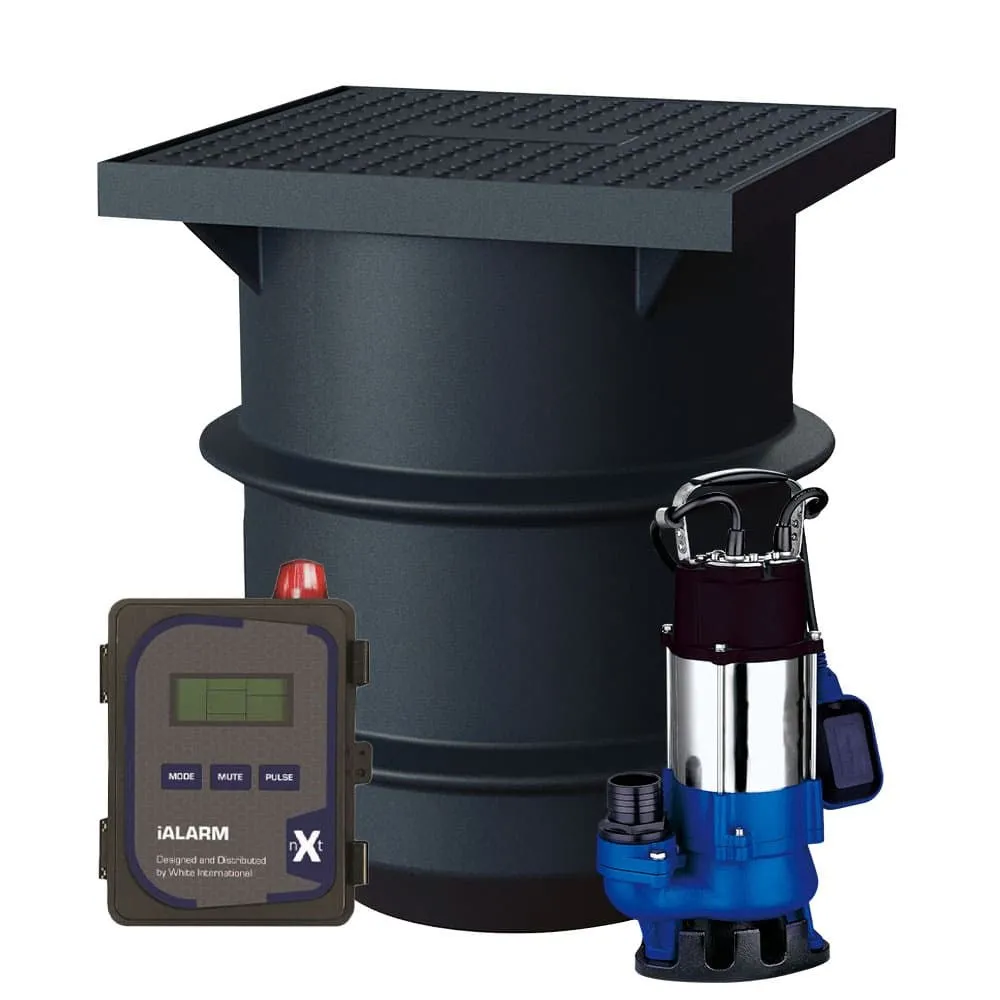

Bianco 250L Packaged Stormwater Pump Station with B45VAS2 Vortex Pump & iAlarm Controller (Max 330LPM/110kPa)

FREIGHT NOT INCLUDED PLEASE CONTACT US FOR QUOTATION

The Bianco B45VAS2 is a compact and efficient submersible vortex pump, ideal for small to medium wastewater applications in residential, agricultural, and light industrial environments. Designed for durability and performance, it features a robust cast iron semi-vortex impeller capable of handling soft solids and particles up to 25mm in size—making it a reliable solution for sewage, greywater, and drainage systems.

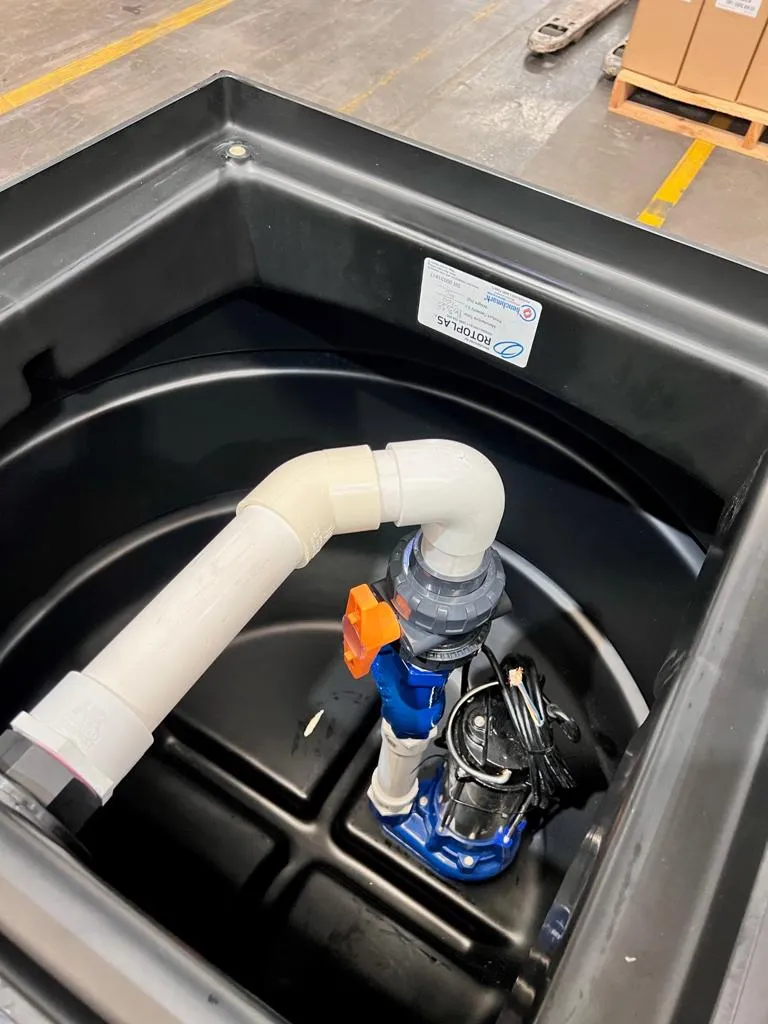

This pump is supplied as part of a complete packaged station, offering easy installation and minimal on-site assembly. It's submersible and suited for stationary operation on a flat surface, connected to fixed pipework.

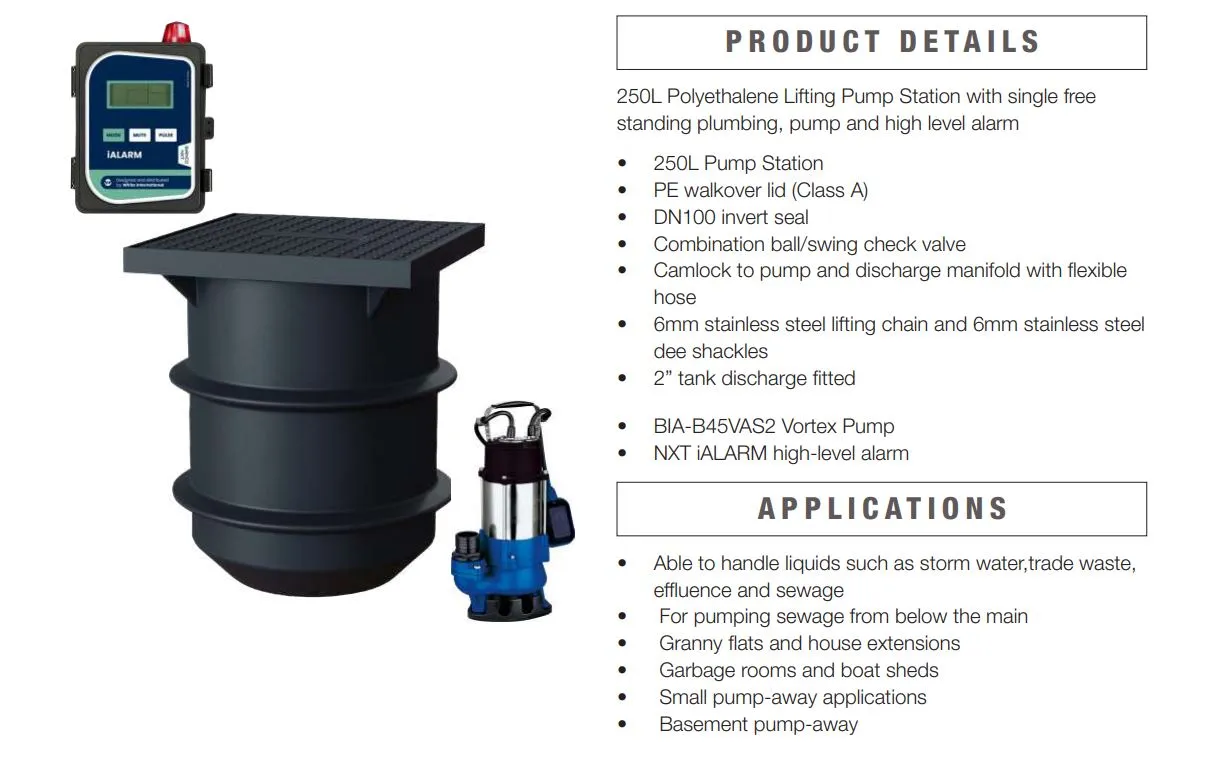

INCLUSIONS

• Bianco B45VAS2 Vortex Pump
• Bianco iCON 250L Polyethylene Tank (freestanding)
• Bianco Level Alarm – 10A, 240V
• In-Tank Plumbing Kit:
  • Ball valve
  • Non-return valve
  • Barrel unions
  • PVC interconnecting pipework
• Class A 600x600 Lid (Optional Class B & D lids available on request)
• Single Pump Controller Available Separately - Click Here!

APPLICATIONS

• Handling of sewage and solid wastewater
• Greywater and drainage systems
• Ideal for:
  • Granny flats
  • Garbage rooms
  • Small-scale pump-away solutions
  • Light industrial/agricultural waste systems

CONSTRUCTION

• Durable polyethylene tank
• Submersible vortex pump with semi-vortex cast iron impeller
• Pumps solids up to 25mm
• Supplied with all necessary internal fittings
• Inlet pipe to be installed by a licensed plumber

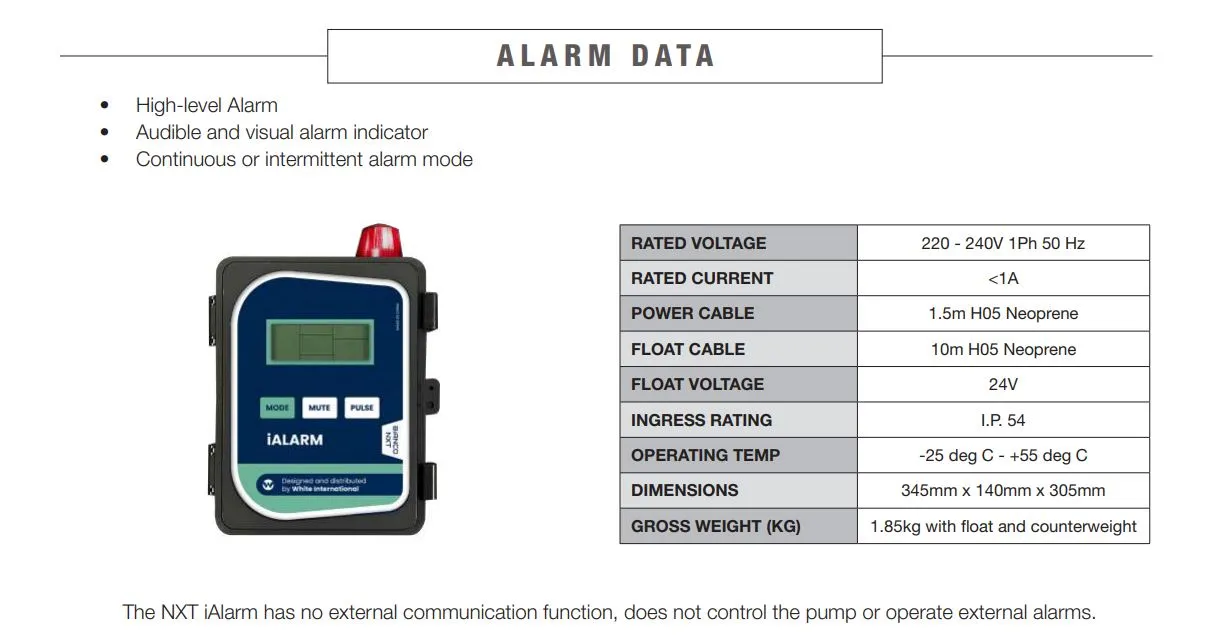

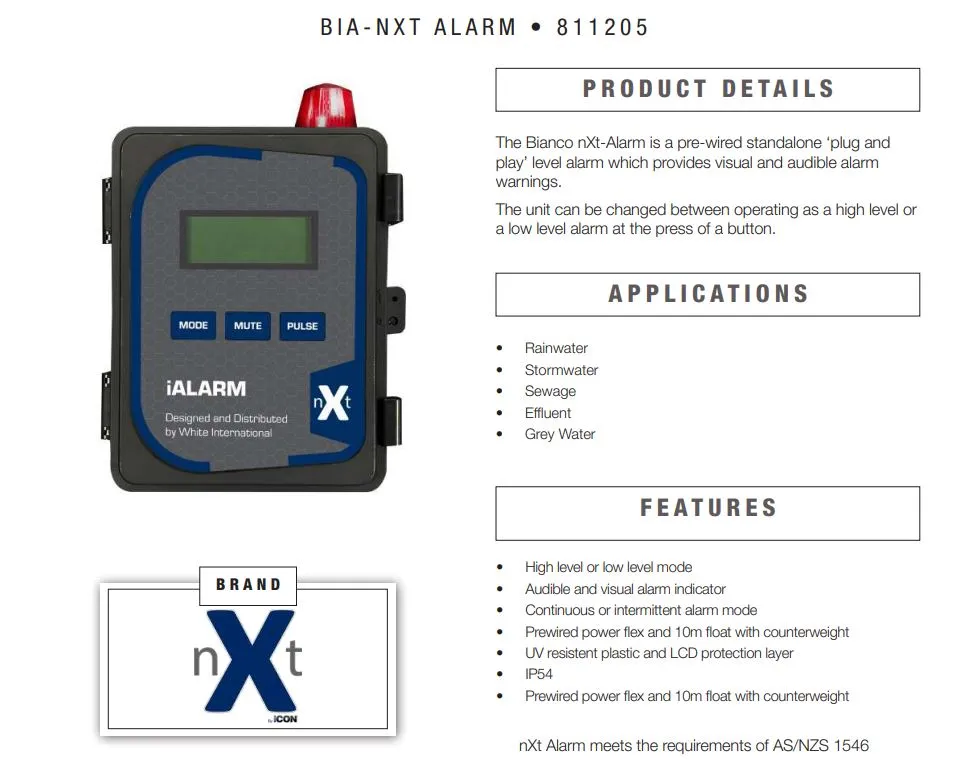

IALARM FEATURES

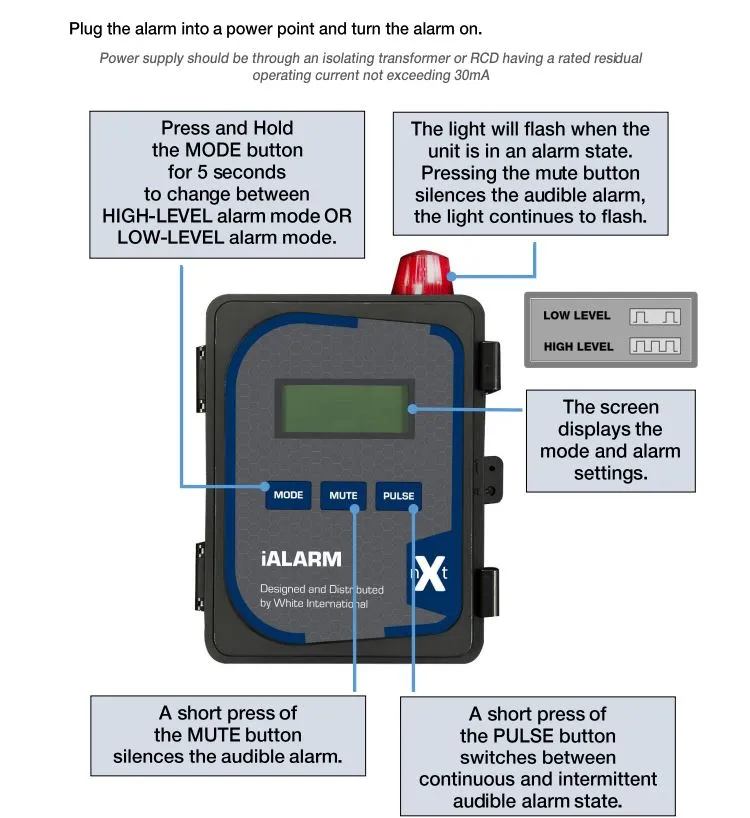

• Dual Alarm Modes: Can be set for high or low-level alarms, offering flexibility for various applications.
• Audible & Visual Indicators: Clearly signals alarm conditions with both sound and light, ensuring prompt attention.
• Customizable Alarm Modes: Choose between continuous or intermittent alarm modes to suit your needs.

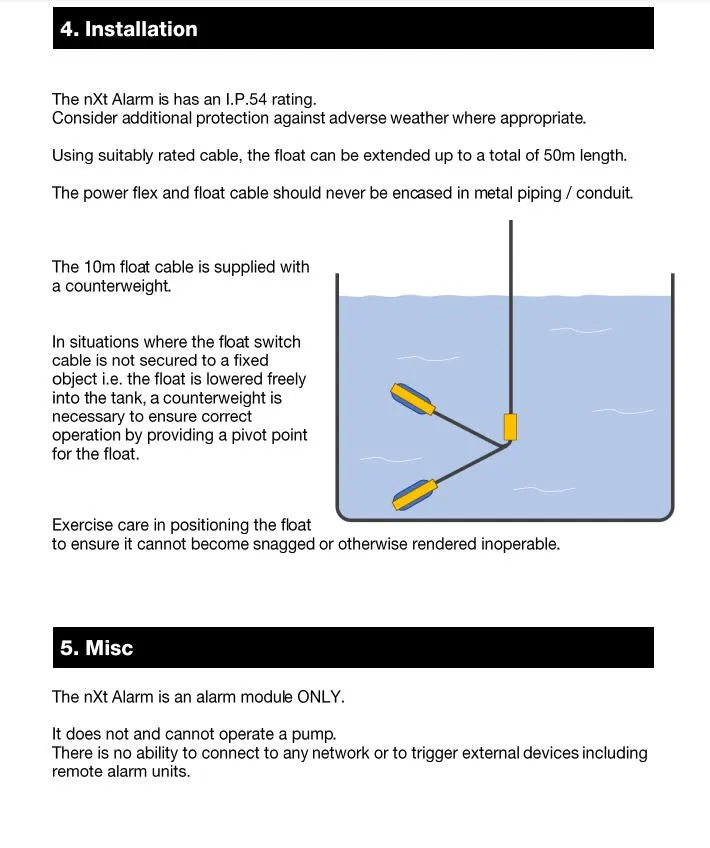

• Pre-Wired Setup: Comes with a 1.5m power cable and 10m float cable with counterweight, making installation quick and hassle-free.
• Durable Construction: Built with UV-resistant plastic and an LCD protection layer for enhanced longevity and reliability.
• Ingress Protection: Rated IP54, ensuring protection against dust and water splashes.
• Wide Operating Temperature Range: Functions effectively in temperatures from -25°C to 55°C.

SPECIFICATIONS
